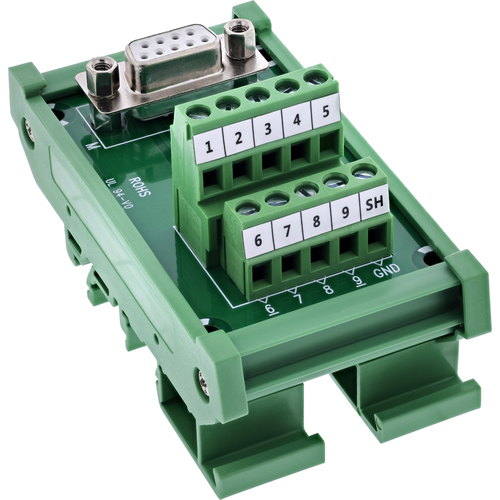

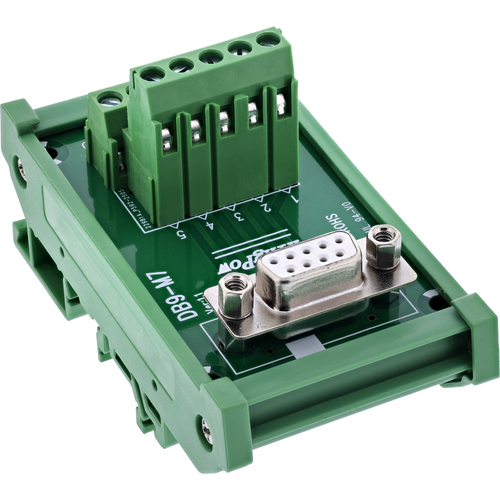

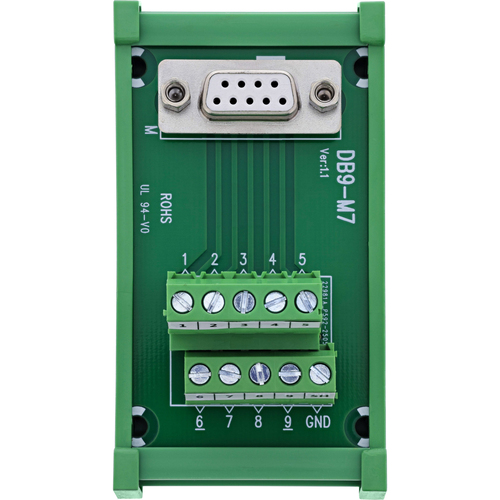

InLine 92501K, Terminal block / D-Sub 9, Green, Female/Female, 300 V, 10 mΩ, 100 V
Time-saving installation:Fast wiring via screw terminals for 14–26 AWG – using a slotted screwdriver ≤ 2.5 mm. Secure connection with fastening threads:The D-Sub 9 female connector features fastening threads (UNC #4-40) for connector locking, ensuring a secure connection with compatible plugs. Versatile industrial applications:Ideal for control cabinet construction, machine control, automation, as well as service and diagnostic environments. DIN rail mounting for structured installations: The integrated DIN rail clip enables direct mounting in control cabinets – space-saving and compliant with standards. High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.8 A per pin ensure reliable signal transmission in professional applications.

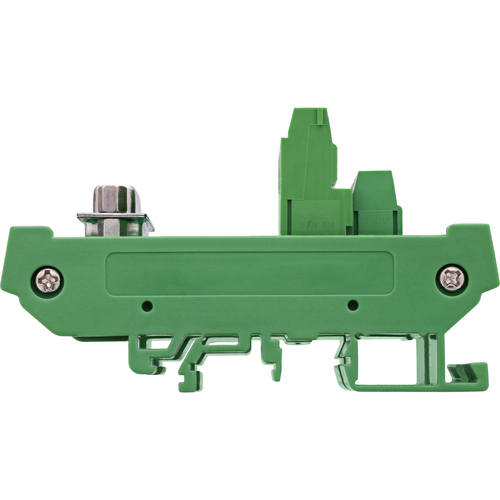

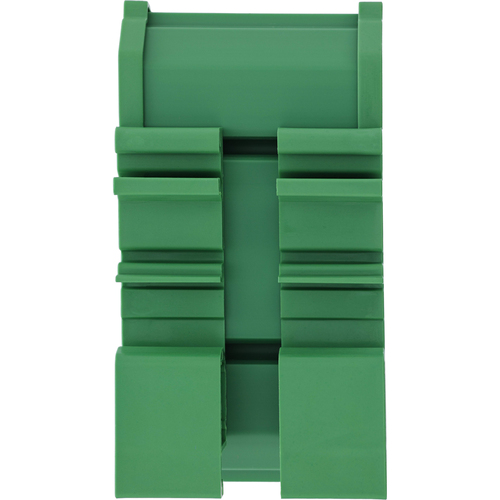

The InLine® D-Sub 9 terminal block with female connector has been specially developed for structured installations in control cabinets or on DIN rails. The laterally accessible screw terminals with pressure plates enable fast wiring of individual conductors in the 14–26 AWG range, without soldering. Installation is carried out using a slotted screwdriver ≤ 2.5 mm. Thanks to the fastening threads (UNC #4-40), the female connector can be securely screwed to compatible mating connectors. The housing design with integrated DIN rail clip allows quick mounting on DIN rails. The EVA insulating layer on the underside provides additional protection when mounted on conductive surfaces.
D-Sub 9 female connector:Breakout design, with fastening threads for connector locking (UNC #4-40) Connection technology:Screw terminal with pressure plate Wire size:14–26 AWG Operation:With slotted screwdriver ≤ 2.5 mm Rated current: 0.8 A per pin Max. operating voltage: 100 V between two signals Insulation resistance:≥ 10 MΩ @ 300 V DC Operating temperature:–10 °C to +70 °C Storage temperature:–40 °C to +85 °C Insulating layer:EVA insulation on the underside Mounting: Housing for direct mounting on DIN rails Dimensions:approx. 87 × 46 × 51 mm (L × W × H)
