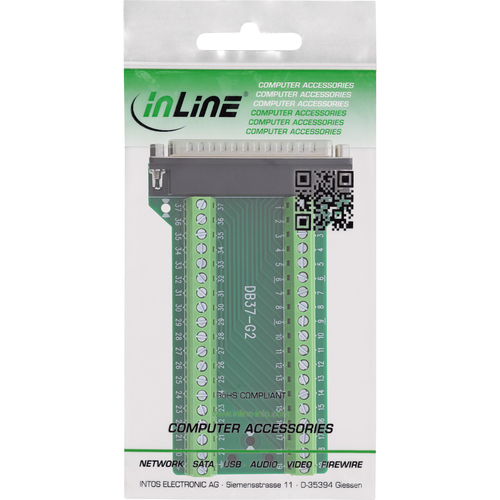

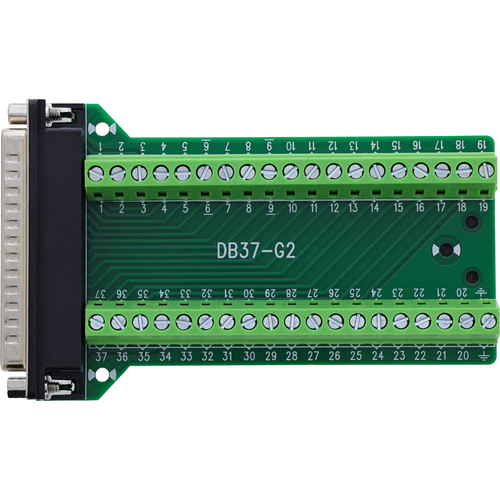

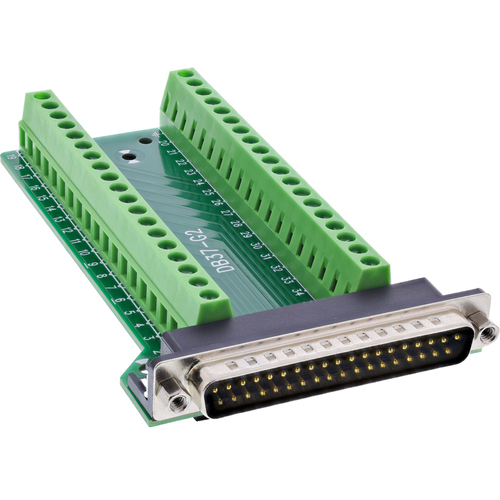

InLine 92502J, Terminal block / D-Sub 37, Black, Green, Male/Female, 26/18, 300 V, 10 mΩ
Time savings during installation:Quick wiring via 37 side-mounted screw terminals for 18–26 AWG – tool-assisted with flat-blade screwdriver ≤ 2.5 mm. Stable connection thanks to screw lock:The D-Sub 37 connector is equipped with a mounting thread (UNC #4-40) and enables secure mechanical fastening with matching sockets – vibration-proof and durable. Versatile use in industry:Ideal for signal distribution, test stations, control units, or temporary measurement systems with high connection density. Side-mounted terminal strip: The connections are positioned next to each other – ideal for limited depth and many signal wires on one level. High signal quality:An insulation resistance ≥ 10 MΩ at 300 V DC and a rated current of 0.8 A per pin ensure reliable signal transmission – even under continuous load.
The InLine® D-Sub 37 terminal block with connector is designed for professional signal wiring in laboratory, service, or machine environments. The side-mounted screw terminals with pressure plate enable quick connection of single wires in the 18–26 AWG range without soldering. Operation is performed with a flat-blade screwdriver ≤ 2.5 mm. The robust screw lock (UNC #4-40) ensures a secure connection to the opposite end. The wide 2-row layout is ideal for applications with many individual signals in a confined space – e.g., signal distributors, adapters, or measuring devices in control cabinets or test areas.
D-Sub 37 connector:2-row, with mounting thread for connector locking (UNC #4-40) Connection technology:Screw terminal with pressure plate (side-mounted) Connection range:18–26 AWG Actuation:With flat-blade screwdriver ≤ 2.5 mm Rated current: 0.8 A per pin Max. operating voltage: 70 V between two signals Insulation resistance:≥ 10 MΩ @ 300 V DC Operating temperature:–20 °C to +70 °C Insulation layer:EVA insulation on underside Dimensions:approx. 115 × 70 × 18 mm (L × H × D)
