16-port gigabit switchfor reliable network expansion with 1 Gb/s per port with auto-negotiation
Plug & Play and Auto MDI/MDI-X crossover detection– Each individual port automatically detects the speed of the connected devices
Green IT: Energy-saving thanks to IEEE 802.3az Energy Efficient Ethernet through cable length detection and automatic signal strength
Store-and-forward switchingto avoid corrupted packets
Freightless19" 1U housing for low noise operation

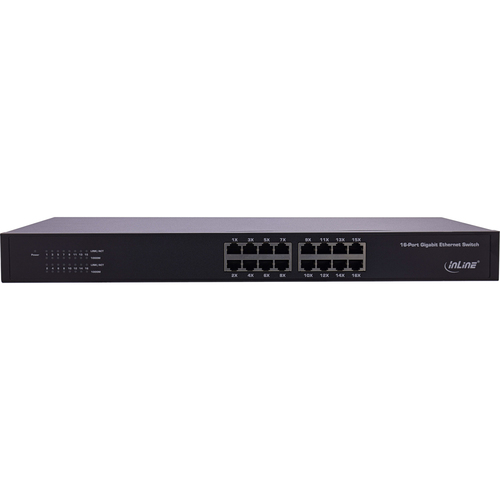

The InLine® 16-port Gigabit network switch is a powerful and uncomplicated solution for expanding existing network infrastructures. Each of the sixteen RJ45 ports automatically detects the speed of the connected devices (10/100/1000 Mb/s) and adapts flexibly in half or full duplex mode.
Thanks to Auto-MDI/MDI-X, the type of network cable used is irrelevant. The store-and-forward technology ensures efficient forwarding of data packets and prevents the transmission of faulty data. With IEEE 802.3az Energy Efficient Ethernet (EEE), cable lengths and network activities are detected to dynamically reduce energy consumption - ideal for sustainable IT environments.
The switch is designed to be fanless and therefore quiet in operation, perfect for office, laboratory or server rack environments. The 19-inch rack mounting in 1U enables easy integration into existing structures.
Technical specifications:
16x RJ45 ports, 10/100/1000Base-T, Auto-MDI/MDI-X
Chipsätze: RTL8382L + RTL8218D + 2x RTL8231
Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az
Store-and-forward switching
MAC address table: 8K, auto-learning & auto-update
Jumbo frame: 9216 bytes
Bandwidth: 32 Gbit/s
LED indicators: PWR, LNK/ACT
Network cable: Cat. 5/5e or higher (up to 100 m)
Dimensions: 480 x 180 x 44 mm
Weight: approx. 2.15 kg
Power supply: 100–240V AC, 50/60 Hz
Max. Power consumption: 21 W
Operating temperature: 0–40 °C
Storage temperature: -40–70 °C
Humidity: operation 10–90 %, storage 5–90 % (non-condensing)
Scope of delivery:
1x InLine® PoE+ Gigabit network injector hub 8 port
2x operating instructions (German/English)
1x power supply
2x 19" mounting bracket
6x screws for the mounting brackets
4x rubber feet
