Clean HDMI panel feed-through with 4K/60 support
Front panel mounting in minutes:Panel-mount socket with included #4-40 screws for a clean finish.
Protects device ports:Fixed feed-through reduces strain and mating cycles directly on the TV, monitor, or source device.
4K/60 transmission:Supports 4096x2160@60 Hz at 4:2:0, 8-bit for high-resolution video signals.
Simple cable management:0.6 m lead simplifies routing inside the enclosure.
The adapter cable brings an HDMI connection to the front or rear of a chassis or panel. Internally, the HDMI A plug connects to the source, externally an HDMI A panel-mount socket is available. The 1:1 pinout enables transparent signal routing up to 4K at 60 Hz (4:2:0, 8-bit) without additional active components.
In professional IT environments, AV racks, and conference rooms, the fixed feed-through facilitates on-site installations and service work. Ports remain easily accessible, mechanically relieved, and integrate reliably into existing infrastructures of companies and public institutions.

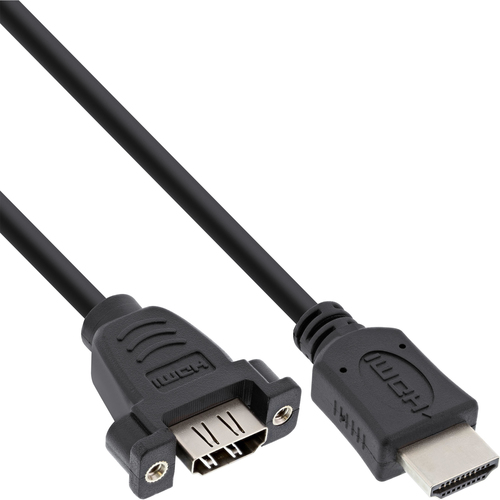

Connection:HDMI A plug to HDMI A panel-mount socket
Length:0.6 m
Supported resolution:4096x2160@60 Hz, 4:2:0, 8-bit
Pinout:1:1
Mounting cutout:approx. 8 x 18 mm
Hole spacing:approx. 25 mm
Screws:#4-40, thread length approx. 15 mm
