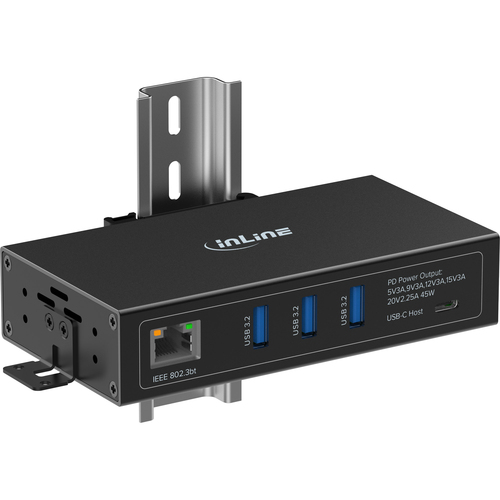

InLine 35396I interface hub USB 3.2 Gen 1 (3.1 Gen 1) Type-C 5000 Mbit/s Black

Industrial PoE USB hub with USB-C, 4 ports, Gigabit Ethernet and 60 W power supply

Centralised power and data supply via PoE:Supplies power to the connected USB-C device and peripherals via a single Ethernet cable, significantly reducing installation effort Flexible connectivity options:Offers three USB-A ports and one USB-C port for expanding existing systems with additional interfaces Integrated network connection:Enables stable data transmission via Gigabit Ethernet at up to 1000 Mb/s Robust for continuous operation:Protection functions such as overcurrent, overvoltage, short-circuit and ESD protection ensure reliable operation Optimised for industrial environments:Aluminium housing improves heat dissipation and supports use at elevated temperatures

The InLine® Industrial PoE USB Hub expands a USB-C-enabled device with additional interfaces whilst simultaneously integrating a network connection and power supply via Power over Ethernet. This creates a compact and efficient solution for installations where data, network and power are provided centrally. Power is supplied via the RJ45 port in accordance with IEEE802.3bt with up to 60 W total power. Up to 45 W is available for the connected host device. An external power supply is not required. This enables flexible integration even in locations with limited power infrastructure. The combination of three USB-A ports and a USB-C host interface expands existing systems with additional connection options. At the same time, the integrated Gigabit Ethernet port provides a stable network connection at up to 1000 Mb/s. The aluminium housing supports efficient heat dissipation and is designed for use in extended temperature ranges. Protective mechanisms such as overvoltage, overcurrent, short-circuit and ESD protection contribute to operational safety. Mounting options such as mounting brackets and DIN rails enable structured integration into existing installation environments. Technical specifications Interfaces:

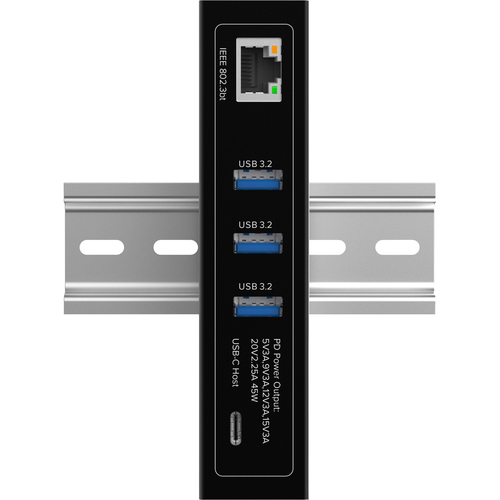

3x USB-A (USB 3.2 Gen 1) 1x USB-C (Host) 1x RJ45 (Gigabit Ethernet)

Data transfer:

USB up to 5 Gb/s, backwards compatible; Network 10/100/1000 Mb/s

Power supply:

Power over Ethernet (PoE) in accordance with IEEE802.3bt, up to 60 W total power, up to 45 W for the host device, no external power supply required

Protection functions:

Surge protection, overcurrent protection, short-circuit protection, ESD protection and automatic recovery after faults

Compatibility:

Windows, macOS, Linux, Android, Chrome OS and USB-C devices with Power Delivery support

Housing:

Aluminium housing for improved heat dissipation

Environmental conditions:

Operating temperature: 0 °C to 70 °C Storage temperature: -40 °C to +125 °C Humidity: 10% to 85% (non-condensing)

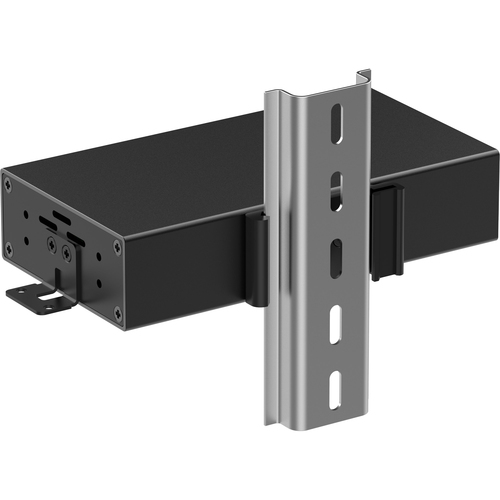

Mounting:

Mounting possible using the included mounting brackets

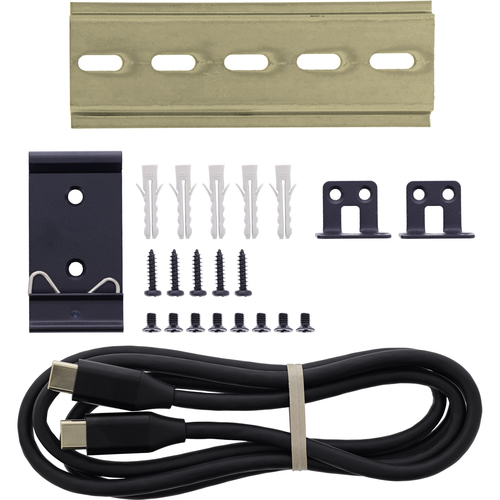

Contents

1 x InLine® Industrial PoE USB Hub, 60 W, USB 3.2 Gen 1, 4-port 1 x USB-C to USB-C cable, approx. 1 m 1 x Mounting kit 1 x DIN rail 10 cm & clip 1 x User manual (German / English)
