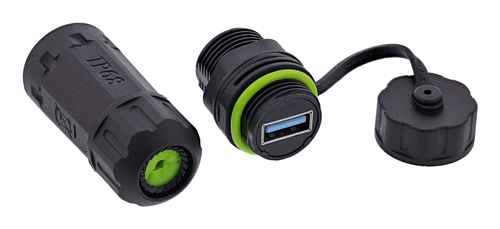

InLine 69927Q cable accessory Cable coupler

Compact USB-A coupling:Only 74 mm long – perfect for installations with limited space. IP68-protected:Robust connection for demanding outdoor and industrial applications. Data and power:5 Gb/s transfer rate, 2 A current at 5 V – ideal for data transfer and charging. Shielded housing:High EMC protection for interference-free connection in critical environments. Tool-free installation:With screw mechanism and seal – safe, fast, reliable.

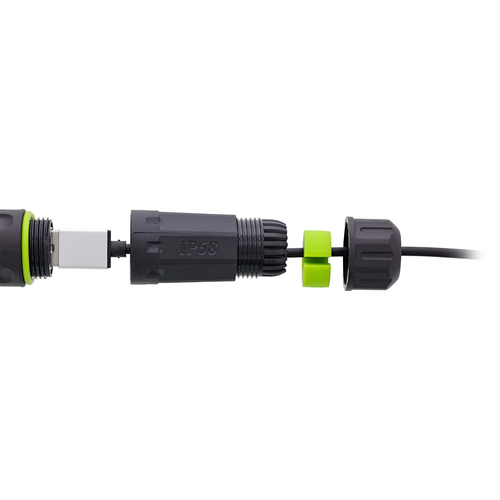

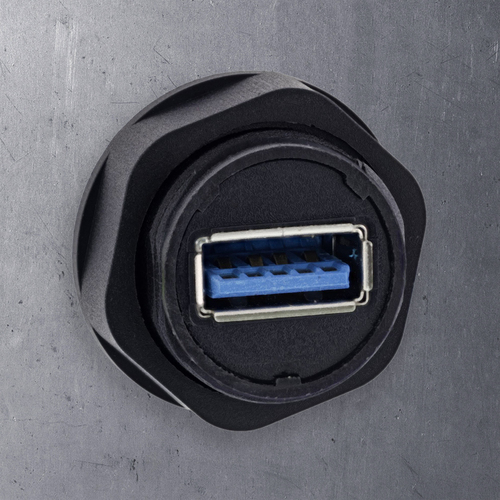

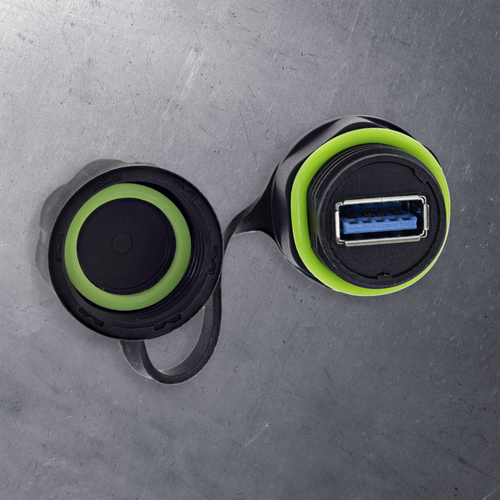

The InLine® USB-A cable connector in a short design with IP68 protection is the ideal solution for USB-A connections under extreme conditions. Its compact length of only 74 mm makes it ideal for confined installation locations, e.g., in outdoor enclosures, machines, or industrial systems. With a USB-A socket on both sides, the shielded connector is designed for data transfers up to 5 Gb/s and charging with up to 2 A at 5 V. It thus meets all the requirements of a modern USB connection – both for industrial applications and for professional outdoor installations. Thanks to the integrated screw mechanism, the coupling can be mounted quickly and without tools. The combination of a green sealing ring and rubber seal ensures reliable IP68 sealing – against dust, moisture, and mechanical stress. The ideal solution for USB connections in demanding environments where reliability, protection, and compactness are required.

Material: Nylon (PA66) Thread size: M20 Module: USB-A female/female Seal: Silicone Transfer rate: 5 Gb/s Current: 2 A Voltage: 5 V Charging: yes Protection rating: IP68 Temperature resistance: -25 °C to +105 °C Cable diameter: 1.5–4.5 mm, 4.5–7.5 mm
