InLine 92504A wire connector USB-A / Terminal block, 5-pin Black, Green

Time savings during installation: Quick wiring via screw terminals for 16–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm. Clear terminal assignment & secure contact: 5-pin terminals with pressure plate, clearly labeled 1: –, 2: D+, 3: D–, 4: +, 5: S (shield) – ideal for service, testing, and prototyping. Versatile industrial use: For quick connection of USB 2.0 signals in test setups, laboratories, commissioning, or troubleshooting – no soldering required. Compact design: Only approx. 50 mm total length; can also be integrated into tight setups or adapter strips to save space. High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load and in industrial environments.

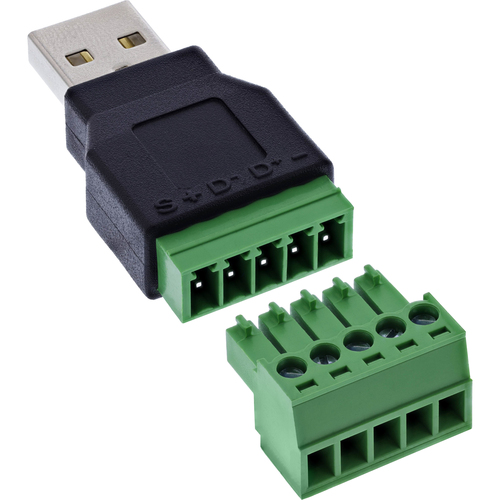

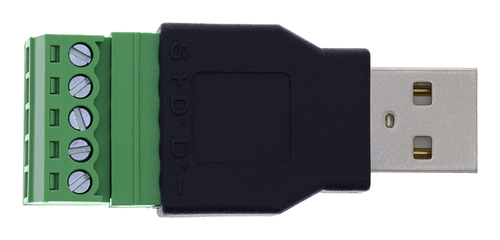

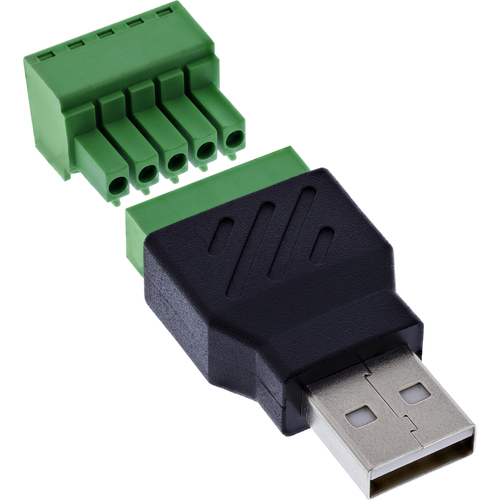

The InLine® USB-A terminal block adapter offers a practical solution for transferring USB-2.0 signals to a 5-pin terminal block without soldering or cable connection. Typical applications can be found in the areas of service, test setups, development, or prototyping. The standard-size USB-A connector is directly connected to a 5-pin screw terminal block. The clear labeling of the terminals – 1: Ground (–), 2: D+, 3: D–, 4: Voltage (+), 5: Shield (S) – enables easy and reliable signal assignment. The terminal connections with a 5.0 mm grid dimension support single wires in the 16–26 AWG range. Wiring is carried out with the aid of a flat-head screwdriver. Thanks to its compact housing, the adapter is particularly space-saving – e.g. in test equipment, mobile measuring stations, or in laboratories.

USB interface:USB-A 2.0, plug Number of pins / assignment:5 terminals / 1: – / 2: D+ / 3: D– / 4: + / 5: S Connection technology:Screw terminal with pressure plate, 5.0 mm pitch Connection range:16–26 AWG Actuation:With flat-blade screwdriver ≤ 2.5 mm Rated current:0.7 A per pin USB operating voltage (VBUS):5 V DC Test voltage (insulation resistance):300 V AC / 1 minute Insulation resistance:≥ 10 MΩ @ 300 V DC Operating temperature:–20 °C to +105 °C Insulation layer:EVA insulation on underside Dimensions:approx. 50 × 21 × 14 mm (L × W × H)
