InLine 92504F wire connector USB-C / Terminal block, 5-pin Black, Green

Time savings during installation: Quick wiring via screw terminals for 16–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm. Integrated USB cable for flexible applications: The 1-meter connection cable connects systems immediately – without additional accessories or soldering. Clear terminal assignment & secure contact: 5-pin terminals with pressure plate, clearly labeled 1: –, 2: D+, 3: D–, 4: +, 5: S (shield) – ideal for service, testing, and prototyping. Versatile use in industry:For fast connection of USB 2.0 signals in test setups, laboratories, commissioning, or troubleshooting – without soldering. High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load and in industrial environments.

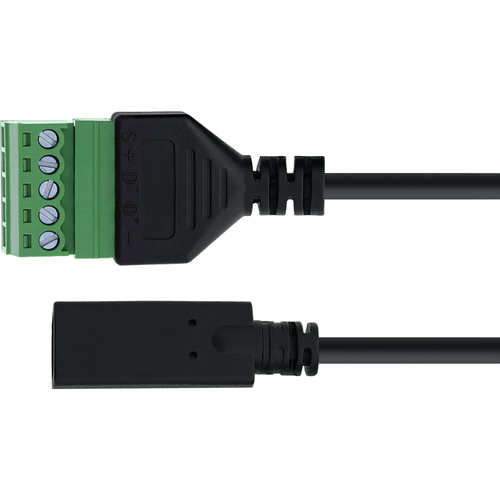

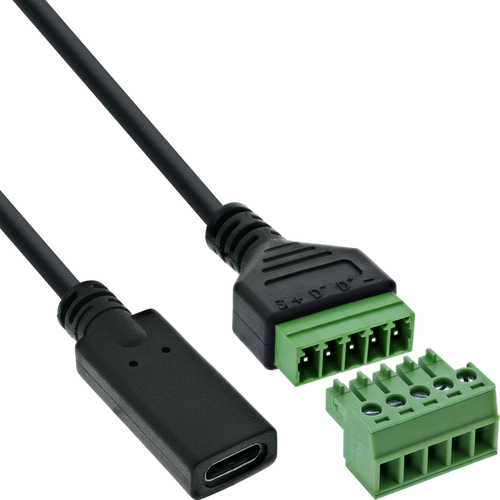

The InLine® USB‐C 2.0 terminal block adapter with 5‐wire connection cable combines the advantages of a modern USB‐C connection with the flexibility of open signal wiring. The USB‐C socket is permanently connected to a 5‐pin screw terminal block – ideal for test benches, diagnostic devices, or embedded systems. The terminals are clearly labeled (1: ground, 2: D+, 3: D–, 4: voltage, 5: shield) and enable safe and error-free signal assignment. The terminal connections with a 5.0 mm grid size support wires in the 16–26 AWG range. Wiring is tool-assisted with a flat-head screwdriver ≤ 2.5 mm. The permanently integrated 1-meter connection cable reduces wiring effort and ensures immediate operation – e.g., in control systems, development boards, or mobile test stations. An EVA insulation layer on the underside provides additional protection when mounting on conductive surfaces.

USB interface:USB‐C 2.0, female connector Cable length:approx. 1 m (PVC, permanently integrated) Number of pins / assignment:5 terminals / 1: – / 2: D+ / 3: D– / 4: + / 5: S Connection technology:Screw terminal with pressure plate, 5.0 mm pitch Connection range:16–26 AWG Actuation:With flat-blade screwdriver ≤ 2.5 mm Rated current: 0.7 A per pin USB operating voltage (VBUS):5 V DC Test voltage (insulation resistance):300 V AC / 1 minute Insulation resistance:≥ 10 MΩ @ 300 V DC Operating temperature:–20 °C to +105 °C Insulation layer:EVA insulation on underside Dimensions:Terminal block approx. 50 × 21.2 × 18.4 mm (L × W × H)
