InLine AmpUSB-EQ, Hi-Res AUDIO HiFi DSD USB Audio DAC

More sound control and connectivity in a USB DAC with tube

High-resolution playback in PCM and DSD:Up to 384 kHz/32 bit and DSD 2.8/5.6 MHz for detailed sound. Adjustable sound with 12AU7 tube and 3-band EQ:Precisely tailor treble, mid and bass to room and preference. Diverse sources and low-loss digitization:USB, S/PDIF optical, RCA/phono, line-in and aux in; save analog signals on a PC or notebook as files. Powerful headphone operation:Reliably drives 16-600 Ohm, with 3.5 mm and 6.3 mm outputs. Stable, low-noise playback:Asynchronous USB mode, De-pop function and metal housing reduce background noise.

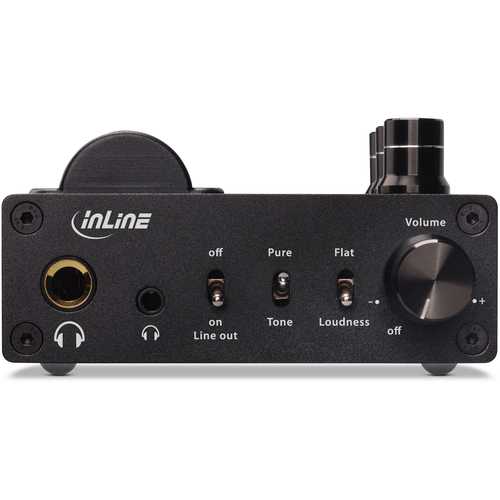

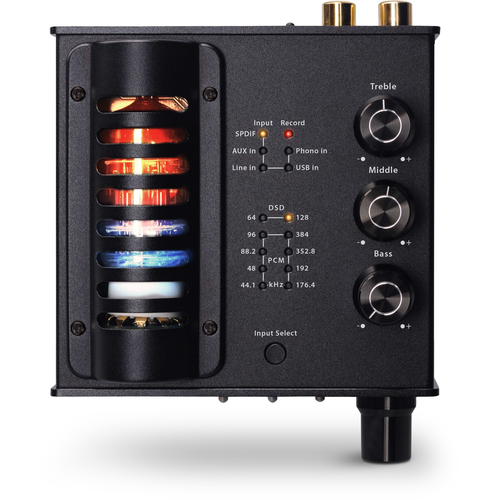

This USB DAC with integrated 12AU7 tube connects computers, players and headphones into a high-quality listening chain. The combination of high-resolution DAC and analog 3-band tone control enables fine adjustment to the recording, speakers or headphones. Use the Input Select button to switch comfortably between the inputs; in parallel, headphone outputs in 3.5 mm and 6.3 mm as well as line, S/PDIF/pre and bass outputs are available. In professional IT environments, in on-site installations, in service deployments or in existing infrastructures of companies and public institutions, the device supports both precise monitoring at the desk and the archiving of analog collections. The reliable A/D recording function helps to digitize records and cassettes cleanly and make them media-neutral.

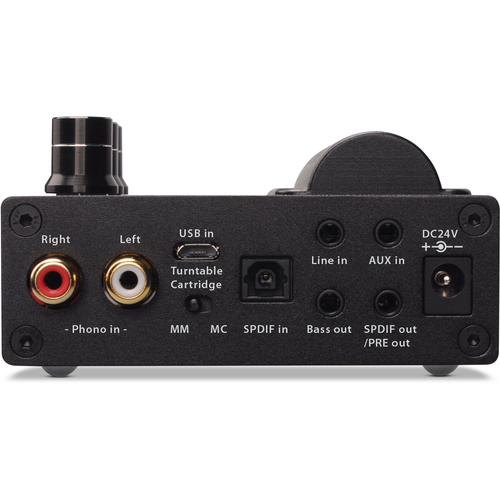

Input ports:Micro-USB, S/PDIF optical, RCA/phono, line-in, aux in Output ports:3.5 mm headphone, 6.3 mm headphone, line-out, S/PDIF/pre out, bass out DAC chipset:ES9018Q2C Tube amplifier:12AU7 PCM playback:up to 384 kHz/32 bit DSD playback:2.8/5.6 MHz, native and DoP USB operation:Asynchronous Headphone impedance:16-600 Ohm Output power 6.3 mm:approx. 210 mW (16 Ohm), approx. 190 mW (32 Ohm) Output power 3.5 mm:approx. 110 mW (16 Ohm), approx. 125 mW (32 Ohm) Equalizer:3-band (treble, mid, bass) Treble:3 kHz-20 kHz, -12 dB to +12 dB, center frequency 18 kHz Mid:200 Hz-4 kHz, -10 dB to +10 dB, center frequency 1 kHz Bass:20-250 Hz, -14 dB to +14 dB, center frequency 100 Hz Loudness EQ:Hardware Turntable switch:MM/MC Volume control:Analog Driver:ASIO Indicators:LEDs for DSD, PCM and input status Housing:Metal De-pop function:Integrated Power supply:DC 24 V via external power supply Operating systems:Windows 10/8.x/7 (32/64-bit), Mac OS X Scope of delivery:USB DAC, USB connection cable, 24 V/2 A power supply (barrel plug 5.5 mm outer, 2.1 mm inner), CD with driver and software Color:Black
