InLine Cat.5e Splitter two different connections via one RJ45 8P8C Patch Cable

Use two 10/100 Mb/s ports over a single cable

Dual network connection without new cabling:Combine two 10/100 Mb/s connections over an existing cable. Simple port splitting at the outlet:RJ45 plug leads to 2x RJ45 sockets. Robust and compact for everyday use:Metallized plastic housing and short 0.15 m lead. Designed for Cat.5e cabling:Implement cable sharing in structured networks.

With this Cat.5e T-adapter you implement cable sharing: Two 10/100 Mb/s Ethernet connections run over an existing twisted-pair cable. Plug the RJ45 plug into a wall outlet or patch panel, the two RJ45 sockets provide two separate ports. At the other end of the cable, a second identical adapter splits the signals again so that both devices are connected as usual. This facilitates expansions in existing infrastructures, especially in on-site installations and service deployments when additional connections are needed at short notice. In professional IT environments of companies and public institutions, additional port capacity is quickly available without planning structural modifications.

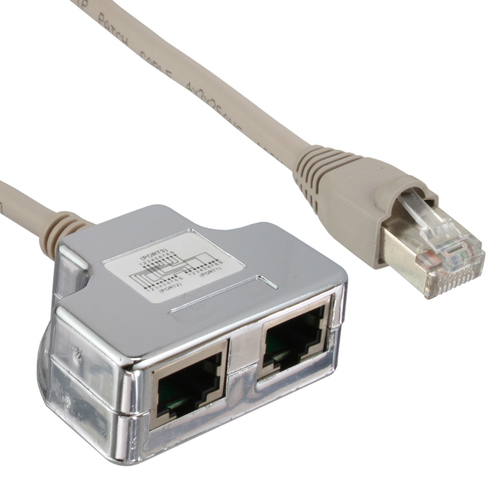

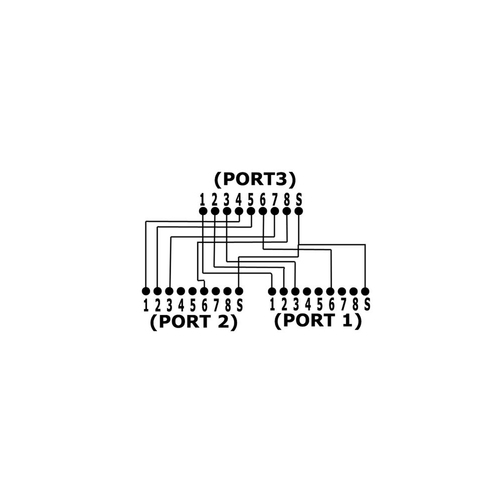

Connection:1x RJ45 plug to 2x RJ45 sockets Standard:Cat.5e Application:10/100 Mb/s cable sharing Length:0.15 m Housing:plastic, metallized Color:silver Pin assignment:Plug-Socket1-Socket2: 1-1-0, 2-2-0, 3-3-0, 4-0-1, 5-0-2, 6-6-0, 7-0-3, 8-0-6 Note:Two adapters are required for the connection
