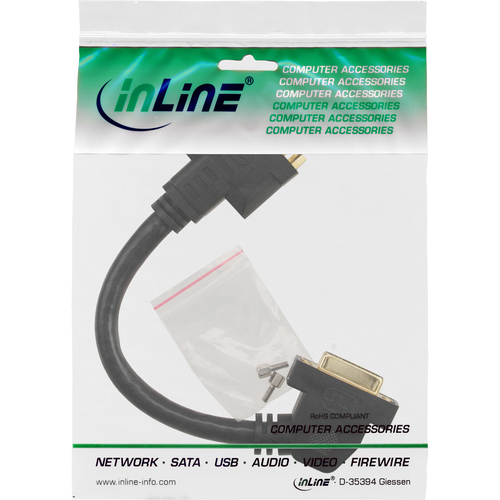

InLine DVI-I Adapter Cable 24+5 DVI female / female with flange 0.2m

Route the DVI port cleanly to the front panel

Front panel feed-through without special parts:Panel-mount socket with defined cutout 9 x 25 mm and 32 mm hole spacing. Stable, precise-fit mounting:Included #4-40 screws (thread length 6 mm) for panels up to 2 mm. Compatible connection without adapter chain:DVI-I 24+5 socket to DVI-I 24+5 socket with 1:1 pin assignment. Reliable connection:Gold-plated contacts for consistent connection.

This DVI-I panel-mount adapter cable routes the port cleanly to the front or rack panel. One DVI-I 24+5 socket is screwed in as a panel-mount socket, the other DVI-I 24+5 socket remains freely accessible for the internal connection. The 1:1 pin assignment enables a direct pass-through without additional adapters. For on-site installations and service deployments, the defined cutout size facilitates reproducible results, while the short 0.2 m lead supports tidy cable routing in existing infrastructures. In professional IT environments as well as in companies and public institutions, the front panel feed-through enables quick access to the DVI port without having to open devices.

Connector 1:DVI-I 24+5 socket Connector 2:DVI-I 24+5 panel-mount socket Pin assignment:1:1 Length:0.2 m Cutout for DVI socket:9 x 25 mm Hole spacing:32 mm Screws:#4-40, thread length 6 mm Max. panel thickness:2 mm Color:Black Contacts:Gold-plated
