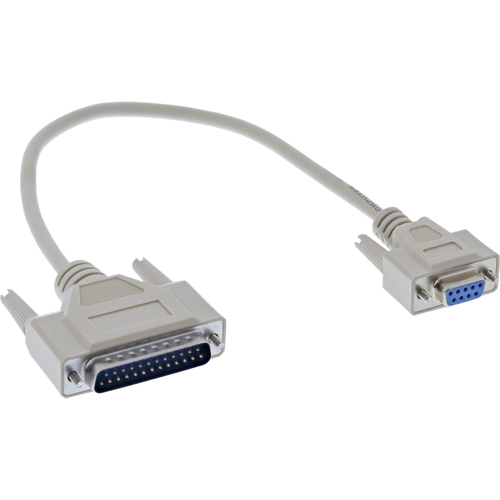

InLine Serial Cable, DB9F to DB25M, moulded plugs, beige, 0.33m

Serial 9-to-25 connection without additional adapters

Direct device connection:Connect 9-pin socket to 25-pin plug without additional adapters. Defined signal routing:Documented pinout (9-25) for traceable wiring. Compact cable management:0.33 m cable length reduces cable excess at the connection. Shield continuity for ground contact:Shield-shield connection supports common shielding.

This serial cable creates a connection between a 9-pin socket and a 25-pin plug over a short distance. The unambiguous pinout enables a clear mapping of signals, so that existing interfaces can be connected without rewiring. The short cable length facilitates a tidy installation directly at the device or at the connection panel. It proves itself in professional IT environments, in on-site installations and in service deployments, especially when existing serial connections need to be adapted or bridged. In existing infrastructures of companies and public institutions, the documented pinout helps with a fast, verifiable implementation.

Connection:9-pin socket to 25-pin plug Length:0.33 m Pinout:(9-25) 1-8, 2-3, 3-2, 4-20, 5-7, 6-6, 7-4, 8-5, 9-22, shield-shield Color:Gray UL:E324703
