InLine 92504L, 6.35 mm 3-pin jack TRS / Terminal block 3 terminals, Black, Green, Male/Female, Straight, 26/16, 300 V
Time savings during installation:Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm. Precise contacting of audio signals: 3-pin 6.35 mm jack plug (TRS) with clearly assigned terminals (L, R, +) – ideal for professional audio or control cables in prototyping, measurements, or control engineering. Side terminal strip for space-saving installation: Adjacent terminals in a 5.0 mm grid allow for compact integration – e.g., in audio distributors, test boxes, or signal converters. Versatile use in industry:For analog signal wiring in laboratories, control modules, audio interfaces, or multimedia applications with 6.35 mm interfaces. High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of up to 1 A per pin ensure reliable signal transmission – even in continuous operation.

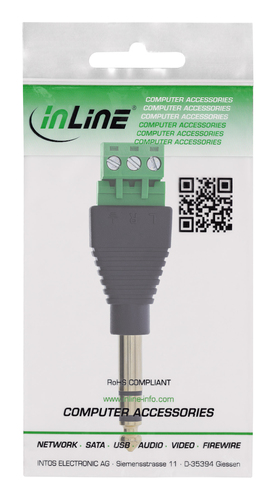

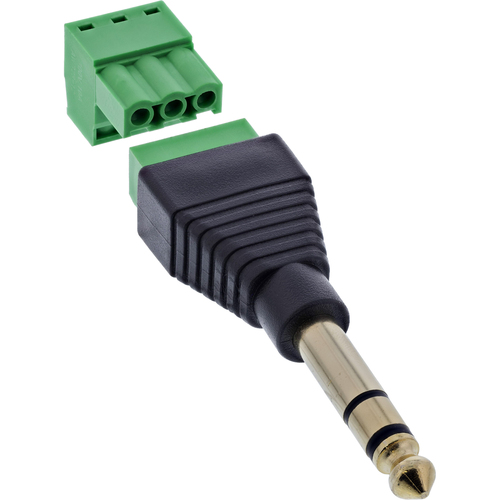

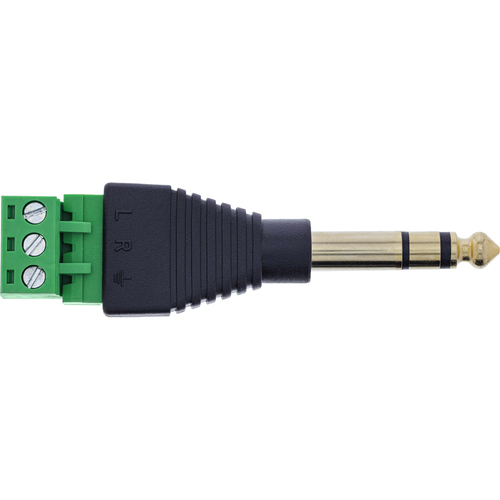

The InLine® 6.35 mm TRS jack plug (stereo, 3-pin) on terminal block offers a solderless solution for connecting analog audio signals – e.g. in control lines, test setups, or prototypes. The screw terminals with pressure plate are aligned laterally and enable fast, tool-assisted wiring in the 18–26 AWG range. The terminal assignment is clearly marked: L (left), R (right), + (common ground/shielding). The compact design is also suitable for applications with limited space, such as in rack systems, distributors, or mobile test fields. The EVA insulation layer on the underside provides protection when mounted on a conductive surface.
Jack connection:6.35 mm TRS jack plug (3-pin, stereo) Number of poles / terminal assignment:3 terminals / L, R, + Connection technology:Screw terminal with pressure plate, 5.0 mm pitch Connection range:18–26 AWG Actuation:With flat-blade screwdriver ≤ 2.5 mm Rated current:1.0 A per pin Max. operating voltage:70 V between two signals Insulation resistance:≥ 10 MΩ @ 300 V DC Max. conductor resistance:5 ohms Operating temperature:–10 °C to +70 °C Insulation layer:EVA insulation on underside
24 specifications
